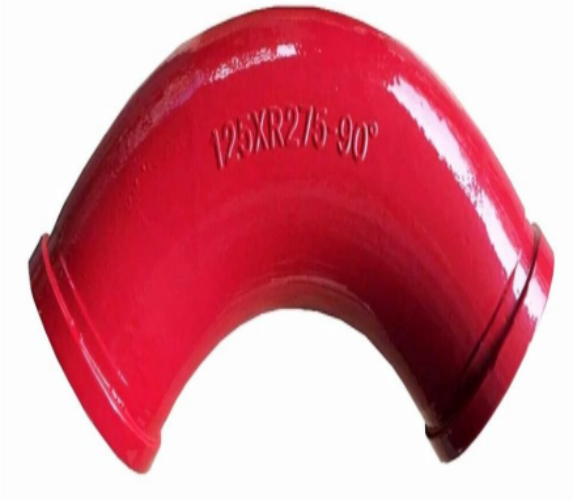

ELBOW 90 DEGREE R 275

Name: ELBOW 90 DEGREE R 275
Brand: Aditya Surya International
Price: 3600.0 INR
Availability: InStock

Price 3600.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

ELBOW 90 DEGREE R 275 Specification

Material
Iron

Shape
Round

Surface Treatment
Painted

Section Shape
Round

ELBOW 90 DEGREE R 275 Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID), Cash Advance (CA)

Delivery Time
1 Days

About ELBOW 90 DEGREE R 275

An "elbow 90 degree r 275" is a specific type of pipe fitting used in concrete pumping, featuring a 90-degree bend, a nominal diameter of DN 125 (approximately 5 inches), and a centerline radius of 275mm. It's commonly used in the boom systems of concrete pumps from brands like Schwing, Putzmeister, and Sany, designed to be highly wear-resistant.

Key characteristics

90 Degree Bend: The fitting changes the direction of flow by 90 degrees.
R275: This indicates a centerline radius of 275mm, which is a larger radius, making it a "long radius" elbow.
DN 125: This is the nominal diameter of the pipe, corresponding to about 5 inches.
Application: It is a component in concrete pump pipelines, specifically for the boom sections of truck-mounted and stationary pumps.
Material: It is often made from high-wear materials like ST52, Hi-Mn13-3, or high-chromium alloy to withstand the abrasive nature of concrete.

A 90 elbow is used to change the direction of flow in a piping system by 90 degrees. The R 275 indicates that the elbow has a bend radius of 275 mm, measured from the pipes centerline. This is typically referred to as a long-radius elbow.

THIS BEND USED IN BOOM PLACER FOR PLACING A DIRECTION IN 90 DEGREE.
